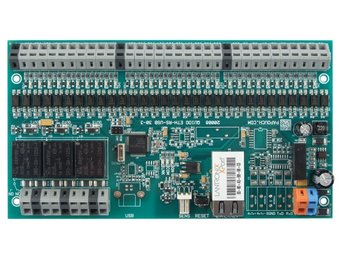

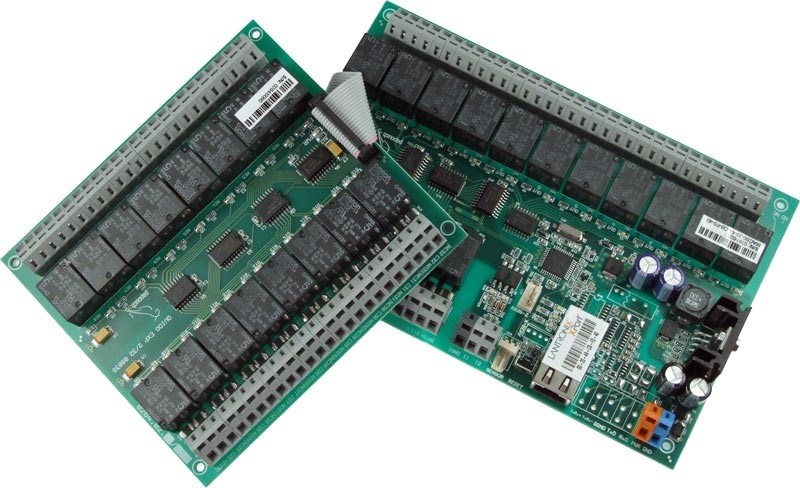

Quido ETH 2/32: 2 inputs, 32 outputs and thermometer

Quido ETH 2/32 includes 2 digitl inputs, 32 outputs and thermometer. Quido connects directly to a LAN (Ethernet) and can be fully controlled and managed through a web interface. Inputs are designed to connect voltage or contacts – can distinguish two states (0 and 1). The outputs are relays with a changeover contact. The thermometer can be connected to a cable of up to 15 meters and is able to measure temperatures in the range from -55 to +125 °C.

Thermometers, plexi covers, metal boxeses or DIN rail holder ban be found in Quido accessories.

Features of I/O module

Connects directly to LAN (10/100 Ethernet)
Controlled by: Web interface, e-mail, Spinel, MODBUS TCP, SNMP, HTTP GET, XML and Wix applications
E-mail notification (without SSL/TLS, port 25).
For developers: Spinel.NET library on Github with examples in C# (documentation only in Czech)
LED indication of power, communication, and the status of inputs and outputs.
2 Galvanically isolated digital inputs for voltage or contacts.
32 Outputs = changeover contact relays.
1 Thermometer with a measuring range of -55 to +125 °C.
Automatically sends information about changes on the inputs.
Autonomous control based on the measured temperature.
Counts pulses on the inputs.
Operating temperature of electronics -20 to +60 °C.
External power supply 8 to 30 V.
Plastic lever for Wago 236 terminals (standard part of delivery).

Basic functions of I/O modul

Reads the current status of inputs
Automatically sends information (email, HTTP GET, ...) about changes on the inputs.
Counts pulses on the inputs or changes in the status of the input (for first 60 inputs)
Control of output relays with a changeover contact
Configuration of the outputs for a defined period
Thermometer: measuring range of -55 to +125 °C
Temperature monitoring (the relay closes when temperature changes, closes for a predefined period when a specified temperature has been reached; sends an e-mail or HTTP GET)

Practical applications

Easy control and sending and notifications of the current status via HTTP GET queries.
Do you want to monitor electricity consumption directly from your PC? How to connect Quido and electricity meter.
Do you need to control an appliance with 230 V power supply? How to switch 230 V with Quido and relay.
What information can you get from XML in Quido?
Are you looking for a feature that is curruntly not available? Feel free to contact us and Quido module can be taylored according your needs!
